    220V Automatic Egg Tray Machine With Multi - Layer Dryer Capacity 5000pcs / H

    Ask Lasest Price
    Brand Name : HONGRUN
    Delivery Time : 75 days
    Payment Terms : T/T, L/C
    Supply Ability : 100SETS PER YEAR
    Price : negotiation
    Certification : ISO9001, CE, SGS, BV, TUV
    Model Number : HRZ-5000M
    • Product Details
    • Company Profile

    220V Automatic Egg Tray Machine With Multi - Layer Dryer Capacity 5000pcs / H

    Automatic Pulp Egg Tray Making Machine With Multi - Layer Dryer

    Description for Egg tray machine
    Egg tray machine equipment mainly uses waste paper, waste carton as raw materials. By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. The equipment also can produce the following: package for glass and ceramics, crafts, small machinery, electric products, toys and so on. The paper carton can replace the plastic bag and corrugated paper. And they not only have protection, cushion performance, make less damage, improve the package figure, but also can saving cost, protect the environment and can be recycled use. They are the typical product in the green package storm.


    Flow Chart:
    1. Pulping system-------2. Forming system-------3. Drying system-------4. Stacking system

    Pulping system: Pulper, Grinding Machine, Mixer, Stuff Pump, Water Pump, Control Cabinet, etc.
    Forming System: This equipment consists of 8 forming pattern plates and 1 transfer plate. The size of each plate is 1600mm×470mm and each plate can carry 5 sets of 30pcs egg tray mold, totally 40 sets. The molding efficiency is 15-18 plates/minutes. It is equipped with the automatic vacuum drainage system, automatic plate washing system, pre-drying system and automatic control cabinet.
    Drying System: We adopt the multi-layer drying oven, the conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.


    Stacking system: It can stack the egg tray automatically with an auto counter. After stacking, the egg trays can be compressed by a pneumatic compaction machine by manual. It can also connect with the automatic shrink-film packing machine.

    Features of Egg Tray Machine
    1) Full automatic running according to setting
    2) Global famous brand of electric parts make stable running
    3) Optimized design with new technology, leading to high efficiency
    4) Perfect malfunction checkout system and motor protecting system guarantee safe running.


    Technical parameter of egg tray machine

    ItemInformationNotes
    Output Range5000pcs/h30 packed egg tray(60~80g)
    Workshop recommendation≥760m2

    Length≥38m;Width≥20m;Height≥6m;
    (It could be adjusted according to the user's existing workshop)

    Type of MaterialWaste paper

    Newspaper/Carton /Paper box/Books/
    Corrugated paper/Kraft paper etc.

    Material consumption300~400kg/h30 packed egg tray(60~80g)
    Water consumption660-880kg/h30 packed egg tray(60~80g)
    Electricity consumption120-150 kw/hFull throttle operation

    Fuel consumption
    (approximately)

    LPG 50~70 kg/h

    30 packed egg tray(60~80g)
    Choose one from these types of fuel

    Natural gas 80~95 m3/h
    Diesel 60~80kg/h
    Operator Required4~8 person/shift24hours, 3shift
    Container requirement for Transport5 of 40 HQ containerWhole production line

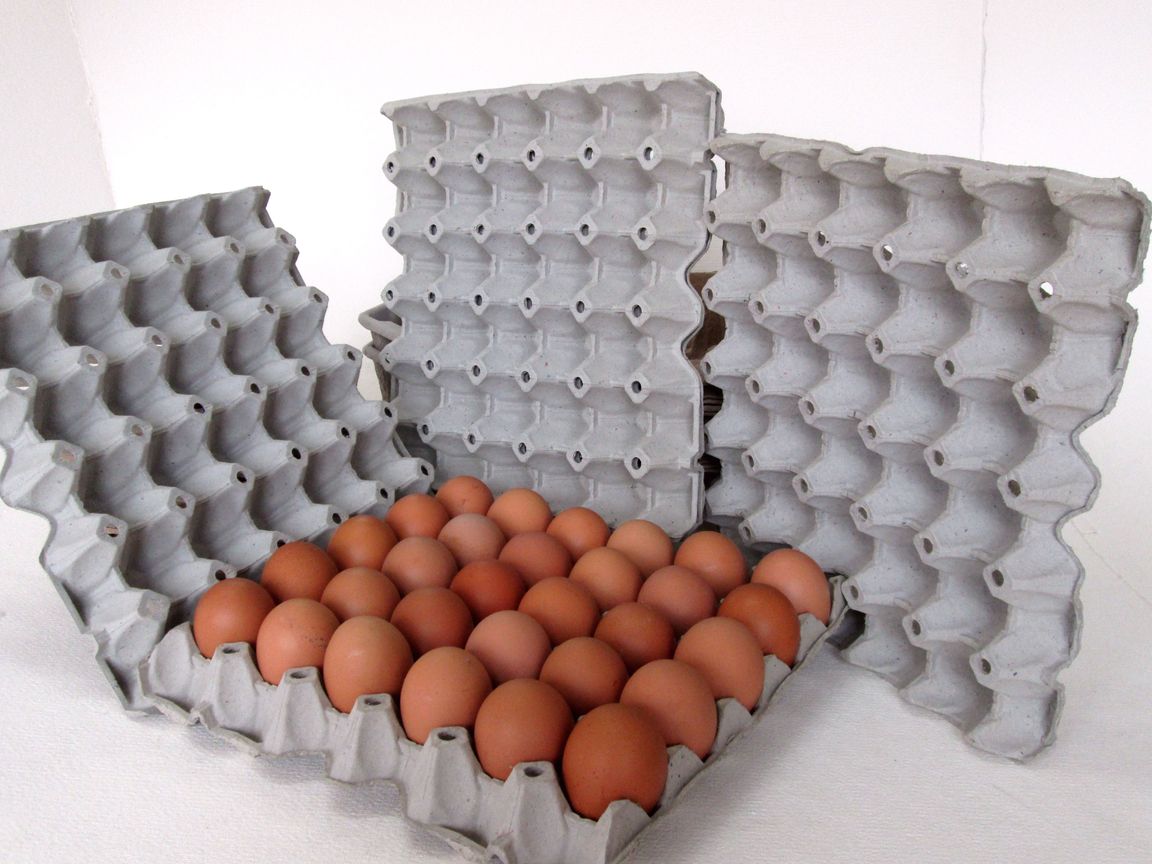

    Finished products of Egg tray machine
    The tray of eggs, paper pulp egg holder, quail egg boxes, eggs in a box, egg crate, egg tray, egg container, egg cartons for
    sale, chicken egg holder etc.

    Egg tray20, 30, 40 packed egg tray… quail egg tray
    Egg carton4, 6, 9, 10, 12, 15, 18, 24 packed egg carton…
    Agricultural productsFruit tray, seeding cup
    Cup salver2, 4 cup salver
    Disposable Medical Care ProductsBedpan, sick pad, female urinal…
    PackagesShoe tree, industrial package…
