Recycled Pulp Egg Packaging Tray Machine Egg Carton Production Line

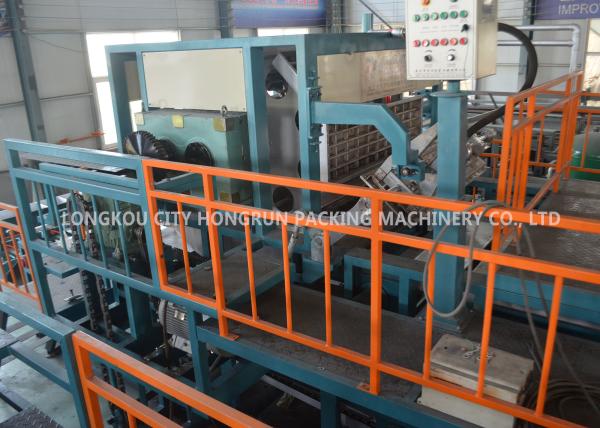

Egg tray forming machine is a kind of machine which absorbs paper
pulp-the raw material, on the surface of mould by vacuum to get
various shape and ratio of wet and dry by regulating time. After
such working procedure as transferring moulds, releasing moulds to
complete paper tray production. Our forming machines adopt advanced
PLC programmable controller; Selecting of high quality electronic
devices and pneumatic components; Using stainless steel pulp
barrels with high performance and long service life.
Raw material:
Raw material: waste old book, waste newspaper, waste carton, etc.
Drying fuel: coal, wood, diesel, natural gas, lp-gas
Main process:
1.Paper Pulp Making System: It is mainly comprised of hydrapulper,
pulp pump, multi-function refiner machine, blender, control
cabinet, etc.
2.Egg tray making machine : This part mainly is the egg tray

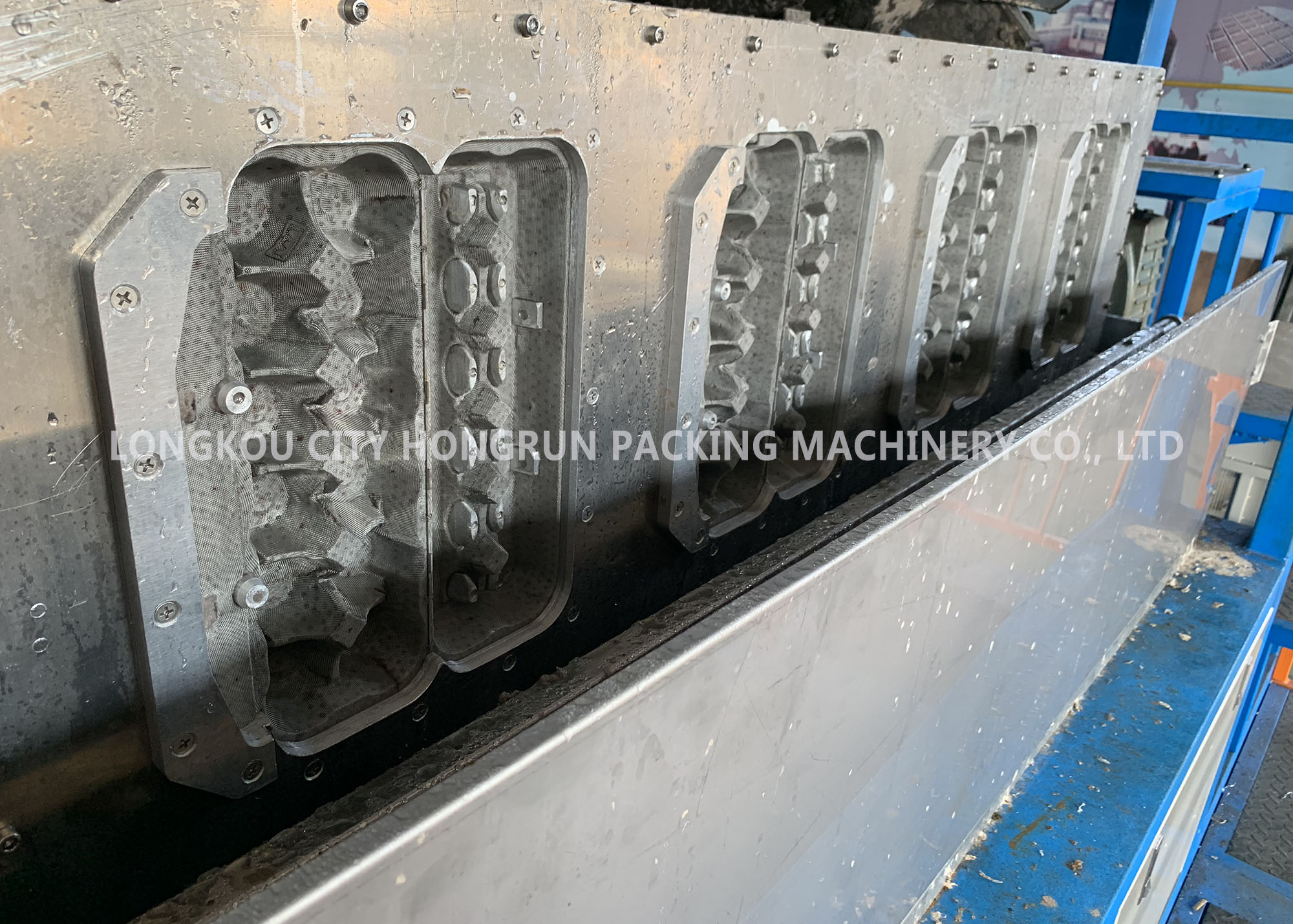

forming machine.We could produce the forming mould and transfer
mould based on our customers request.
3.Drying machine : When the egg tray be made over by the forming
machine, the egg tray will be put on the drying line by transfer
mould,they will across the drying channel, then you can get the dry
tray! there are Multi - metal dryer, civil dryer .and drying fuels:
coal, wood, diesel, natural gas, liquefied petroleum gas and so on.
We give the solution of the pulp moulding line as follows:
| Paper Pulp Making System | Hydro-pulper,Vibra sieve machine,White water pump, pulp pump,Blender,Pulp making system |
| Tray Moulding System | Rotary Molding Machine ,Forming Mold,Unloding Mold, Vacuum Pump,Air Compressor,Autospray,Vacuum Tank,Wate |
| Drying System | Metal drying crust,Blower,Burner,Wet exhauster,Sheet Conveyer, Conveyer front driver,Conveyer rear driver,Packer machine |
Technical data
| Item | Information | Notes |
| Output Range | 4000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | >=525m2 | Length>=35m;width>=15m;height>=6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waster paper | News paper/Carton /Paper box/Books/ Corrugated paper etc. |
| Material consumption | 250~280kg/h | 30 packed egg tray (65~70g) |
| Water consumption | 650-1000kg/h | 30 packed egg tray (65~70g) |
| Electricity consumption | 110kw | Full throttle operation |
Fuel consumption (approximately) | LPG 25~32M3/h | Choose one from the three types of fuel |
| natural gas 75~95 M3/h |
| diesel 60~80kg/h |
| Operator Required | 4~6 people/shift | 24 hours ,3 shift |
| Container requirement for Transport | 4 of 40’HQ container | Whole production line |
The parameters Advantage of egg tray machine production line
1 High automation, low labor cost.
2.Low production cost
3.Energy saving(by 30%-50% compared with other manufacturer)
4.Water saving(complete water treatment system equipped)
5.Efficient Multilayer dryer, saving space(by 33% compared with
traditional dryer)
6.Stable final product quality(same weight, same dimension,strong
and good look)
Our Services
Pre-sale service:
help you design the equipment layout. 2. take you to see our
factory. 3. answer all your question.
In-sale service: ensure the quality and delivery time.
After-sale service:
We supply videos and installation instruction to teach how to
install the equipment.
