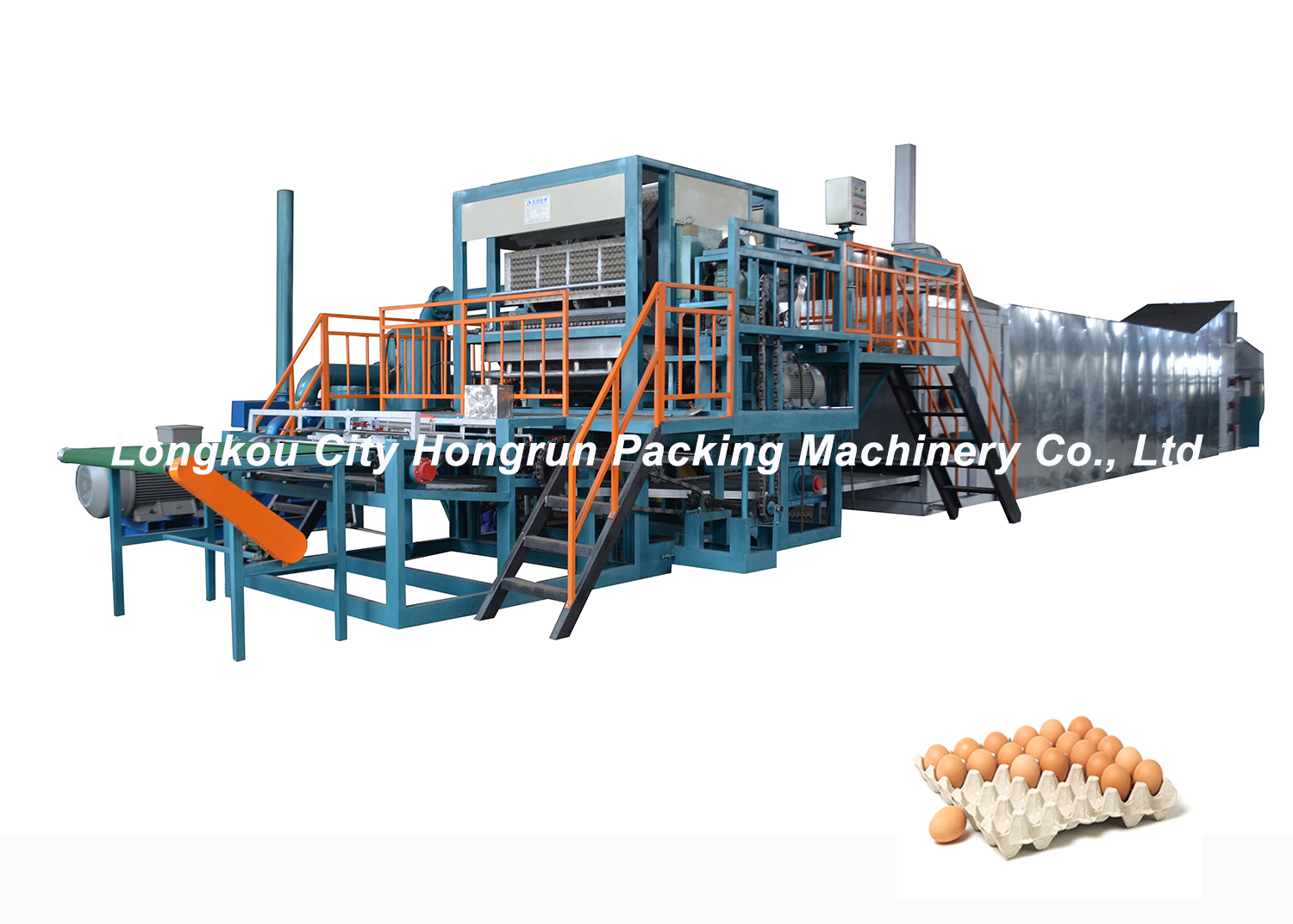

Eco - Friendly Pulp Molding Machines For Making Egg / Fruit Tray /
Carton
Part1. Product Description
Egg tray machine equipment mainly uses waste paper,waste carton as
raw materials. By smash pulp, vibrating pulp, grinding pulp and
forming pulp, the forming machine adsorbs the pulp by vacuum type
with some necessary chemicals. The equipment also can produce the
followings: package for glass and ceramics, crafts, small
machinery, electric products, toys and so on. The paper carton can
replace the plastic bag and corrugated paper. And they not only
have the protection, cushion performance, make less damage, improve
the package figure, but also can saving cost, protect environment
and can be recycled use. They are the typical product in the green
package storm.
Raw materail :
1. Waste paper :Such as cardboard, cardboard boxes, newspapers,
paper mills and other waste paper
2.Pulp board :Pulp board made of straw, bagasse, bamboo, wood and
other raw materials
3.Plant Fibres :Palm fiber, straw, sugar cane and so on
Finished product: All kinds of egg tray , egg box ,fruit tray, wine
tray, cup tray ,shoe tray ect.

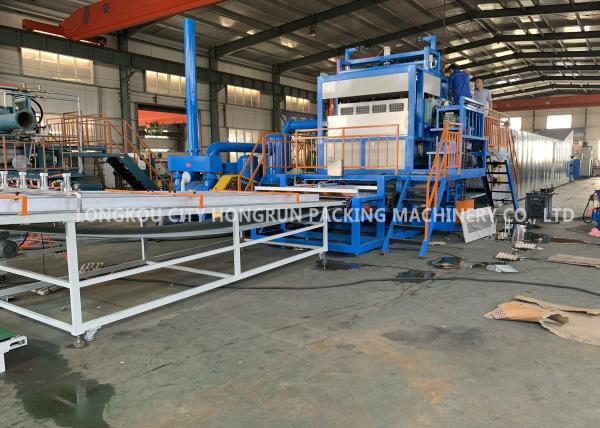

Part2. Standard Work Flow of Egg Tray Machine
1) Forming system include forming machine,vacuum pump,vacuum
container,self absorbing pump, air compressor,air tank,clean water
pump, forming mould, transferring mould.
2) Pulp making system include hydraulic pulper, pulp pump,
multi-function refiner machine, stirrer, pulp making control
system.
3) Drying system include blower, burner, conveyer, drying control
system.
4) Packing System: Automatic stacking and counting machine.
Part3. Features of Egg Tray Machine
1) Full automatic running according to setting
2) Global famous brand of electric parts make stable running
3) Optimized design with new technology, leading to high efficiency
4) Perfect malfunction checkout system and motor protecting system
guarantee safe running.
Part4.Technology Parameters
| Item | Information | Notes |
| Output Range | 4000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | >=525m2 | Length>=35m;width>=15m;height>=6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waster paper | News paper/Carton /Paper box/Books/ Corrugated paper etc. |
| Material consumption | 250~280kg/h | 30 packed egg tray (65~70g) |
| Water consumption | 650-1000kg/h | 30 packed egg tray (65~70g) |
| Electricity consumption | 110kw | Full throttle operation |
Fuel consumption (approximately) | LPG 25~32M3/h | Choose one from the three types of fuel |
| natural gas 75~95 M3/h |
| diesel 60~80kg/h |
| Operator Required | 4~6 people/shift | 24 hours ,3 shift |
| Container requirement for Transport | 4 of 40’HQ container | Whole production line |
