High Efficiency 5000 Pieces Pulp Molding Machine For Egg Tray
Cartons
Egg Tray Machine (pulp moulding machine) consume used waste paper
as raw material and produce different kinds of paper tray according to
your requirement, such as egg tray/dishes ,egg carton/box,fruit tray,industrial
package tray,seeding tray ,win tray ,shoe support and small products packages ,etc. The
different final products are decided by your market choice.
RAW MATERIAL
Processing system
1) Forming system include forming machine,vacuum pump,vacuum
container,self absorbing pump, air compressor,air tank,clean water
pump, forming mould, transferring mould.
2) Pulp making system include hydraulic pulper, pulp pump,
multi-function refiner machine, stirrer, pulp making control
system.
3) Drying system include blower, burner, conveyer, drying control
system.
4) Packing System: Automatic stacking and counting machine.
Features of Egg Tray Machine
1) Full automatic running according to setting
2) Global famous brand of electric parts make stable running
3) Optimized design with new technology, leading to high efficiency
4) Perfect malfunction checkout system and motor protecting system
guarantee safe running.
Technical data
| Item | Information | Notes |
| Output Range | 5000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | ≥760m2 | Length≥38m;Width≥20m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waste paper | Newspaper/Carton /Paper box/Books/ Corrugated paper/Kraft paper etc. |
| Material consumption | 300~400kg/h | 30 packed egg tray(60~80g) |
| Water consumption | 660-880kg/h | 30 packed egg tray(60~80g) |
| Electricity consumption | 120-150 kw/h | Full throttle operation |
Fuel consumption (approximately) | LPG 50~70 kg/h | 30 packed egg tray(60~80g) Choose one from these types of fuel |
| Natural gas 80~95 m3/h |
| Diesel 60~80kg/h |
| Operator Required | 4~8 person/shift | 24hours, 3shift |
| Container requirement for Transport | 5 of 40 HQ container | Whole production line |

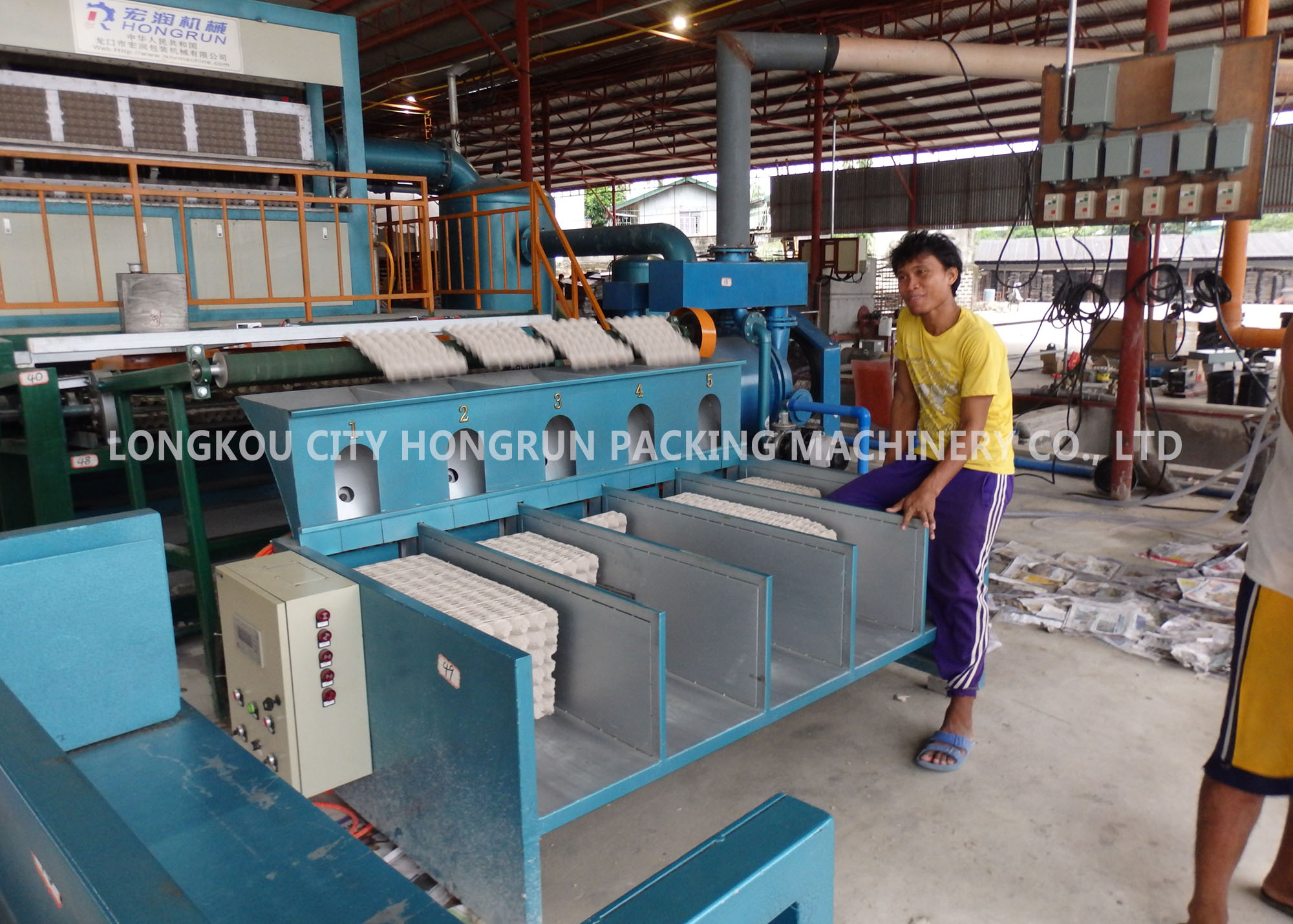

Finished products
We also provide other model of egg tray machine
| For 30-cell egg tray as the example: |
| Model | Throughput | Drying System | Workshop Space | Rated Power |
| HR-1000S | 1000pcs/h | Single-Layer Metal | 40m*10m*6m | 88KW |
| HR-1500S | 1500pcs/h | Single-Layer Metal | 42m*10m*6m | 122KW |
| HRZ-2000M | 2000pcs/h | Multi Layers Mental | 30m*10m*6m | 160KW |
| HRZ-3000M | 3000pcs/h | Multi Layers Mental | 30m*10m*6m | 187KW |
| HRZ-4000M | 4000pcs/h | Multi Layers Mental | 35m*10m*6m | 206KW |
| HRZ-6000M | 6000pcs/h | Multi Layers Mental | 38m*15m*6m | 327KW |
| HRP-8000M | 8000pcs/h | Multi Layers Mental | 35m*20m*6m | 470KW |
| HRD-12000M | 12000pcs/h | Multi Layers Mental | 45m*20m*8m | 477KW |
| ž Exact data are subject to final contract. |
