Automatic PS Disposable Take Away Foam Food Box Making Machine
Brief introduction:
Full Automatic PS Fast Food Container Line developed by our company
is a kind of universal functional thermoplastic forming production
line combined with forming and cutting functions, vacuum forming is
the main way, also can be mold press forming or comprehensive
forming method, this equipment can processing diverse thermoplastic
sheet materials. The whole line adapt
Full computerized PLC system,with features of advanced structure,
stable character, easy operation, high capacity, large forming
area, high automatic degree etc. It is mainly used for PSP forming
to produce food containers, trays, bowls and cups and so on. The
biggest advantage of this device is an integrated type forming,
cutting, stacking in one. It is with not only energy saving but
also space saving, time saving and labor saving.
The fully automatic production line includes :
1. PS foam sheet extrusion machine
2. Fully automatic forming & cutting machine
3. Crusher and recycling machine

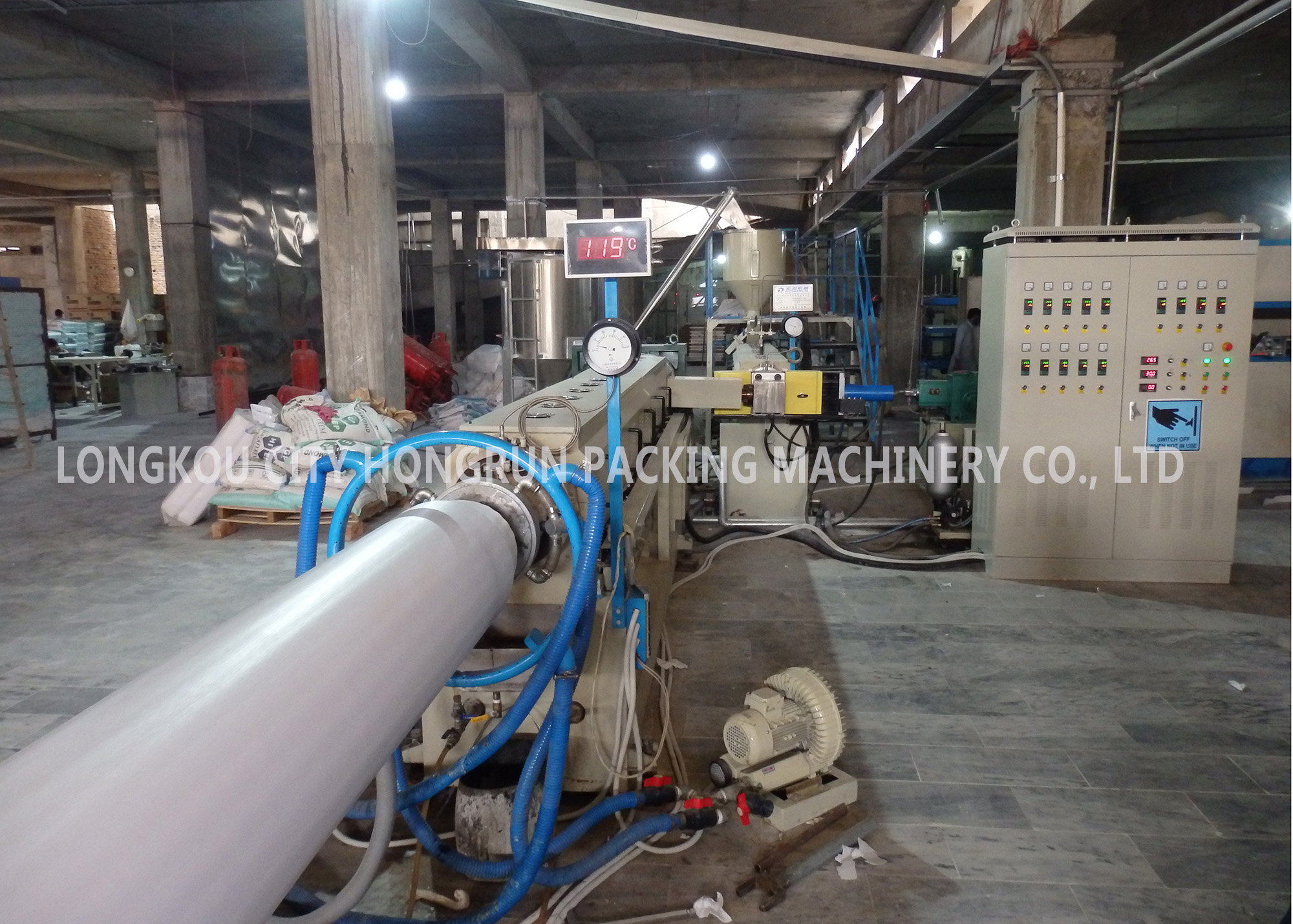

1. PS foam sheet extrusion machine
Product introduction:
This production line adopts double-screw foam sheet extrusion
technology. PS foam sheet is a kind of new-type packing material
with the features of heat preservation, safety, sanitation and good
plasticity. It’s mainly used to make various types of food
containers, such as lunch box, dinner trays, bowls etc. by
thermoforming. It’s also can be used to make advertisement board,
industrial products packing and so on. It has stable performance,
big capacity, high automation and yields quality products.
Machine Specifications
| Item | Unit | Parameter |
| Model | | 105/120 |
| Applicable materials | | GPPS granule(123P/525) |
| Thickness of sheet | mm | 1-3.5 |
| Width of sheet | mm | 640~1080 |
| Foaming rate | | 12-20 |
| Weight of product | kg/m³ | 50~83 |
| Output | kg/h | 150~200 |
| Rated power(approximately) | KW | 160 |
| Power supply | | Three phase 380V/50Hz |
| External dimension | mm | 25000×4500×2800 |
| Complete weight | Ton | About18 |
2. Fully automatic forming & cutting machine
This machine developed by combining the domestic and foreign
equipment and advantages, is a set of hydraulic pneumatic servo
drive for an automatic forming cutting stacking machine. The main
electrical components, such as vacuum pump,PLC,made in Japan and
Germany, ensure the reliability of the equipment operation, and can
be used for hot forming process PS material which is used to
produce different food container, such as lunch box, hamburger box,
pizza box, bowl, plate, dish, etc. Forming, cutting, stacking is
done in the same machine, saving labor, improving efficient, lowing
labor intensity and reducing production cost.
Main technical parameters
| Item | Unit | Parameter |
| Model | / | HR-M1080 |
| Power supply | / | Three phase 380V/50Hz |
| Production efficiency | s/mold | 4-5 |
| Installed power (approximately) | KW | 168 |
| Total weight (approximately) | Ton | 16 |
| Mounting size | m | 12×2×2.6 |
| Compressed air capacity | m3/min | 0.4～0.7 |
| Compressed air pressure | Mpa | 0.7 |
| Cooling water | T/h | 1 |
3.Crusher and recycling machine
This machine is special for polystyrene. It adopts single screw,
double stage plasticification, increasing compress ratio. The whole
machine consists of crusher, main machine, cooling tank and
granulator. It can recycle many foamed products, such as PS, XPS,
EPS etc.
Main parameters
| Model | 105/300 |
| Screw Diameter | Φ105/300mm |
| Total power | 30kw |
| Power supply | three phase 380V/50Hz |
| Number of heating zones | 4 |
| Throughput | 120kg/h |
| Applicable materials | PS foam scrap |
Final products:
