Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine

    Buy cheap Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine from wholesalers

    Buy cheap Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine from wholesalers
    • Buy cheap Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine from wholesalers
    • Buy cheap Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine from wholesalers
    • Buy cheap Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine from wholesalers
    • Buy cheap Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine from wholesalers
    • Buy cheap Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine from wholesalers

    Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine

    Ask Lasest Price
    Brand Name : HONGRUN
    Certification : ISO9001, CE, SGS, BV, TUV
    Model Number : HRZ-5000M
    Price : negotiation
    Delivery Time : 75days
    Payment Terms : T/T, L/C
    Supply Ability : 100SETS PER YEAR
    • Product Details
    • Company Profile

    Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine

    Energy Saving Automatic Egg Tray Forming Machine / Pulp Tray Making Machine


    Egg tray machine now is widely used in pulp molding products manufacturing, the raw material is waste paper like Newspaper, Carton, Paper box, Books, Corrugated paper etc.
    The raw material goes into the pulping system, mixing with water, become the paper pulp.
    And then the paper pulp will be sent into the egg tray forming machine by a pump, the egg tray forming machine will produce the
    egg trays using vacuum forming principle.

    The egg tray that coming out from the forming machine is wet, so the forming system needs to be equipped with the drying system.
    If the output of egg tray is less than 1000 pieces per hour, and the weather is good enough, we recommend the manual operation type forming machine and sunshine drying mode, this can reduce the cost of equipment investment. If the weather is not enough to dry the egg trays easily, or the output of the machine is more than 1000 pcs/h, we recommend the automatic metal drying system,
    this egg tray drying system using different fuel to dry the egg trays automatically, as for the fuel choices, there is like Natural gas/LNG/LPG, diesel, heavy oil, wood, coal, electric.

    After drying, the egg trays can be piled up by automatic stacker, and then the workers can package the egg trays by plastic bags.

    Application

    The tray of eggs, paper pulp egg holder, quail egg boxes, eggs in a box, egg crate, egg tray, egg container, egg cartons for
    sale, chicken egg holder etc.

    Egg tray20, 30, 40 packed egg tray… quail egg tray
    Egg carton4, 6, 9, 10, 12, 15, 18, 24 packed egg carton…
    Agricultural productsFruit tray, seeding cup
    Cup salver2, 4 cup salver
    Disposable Medical Care ProductsBedpan, sick pad, female urinal…
    PackagesShoe tree, industrial package…

    Knowledge Note of Egg tray machine
    Pulping system: Pulper, Grinding Machine, Mixer, Stuff Pump, Water Pump, Control Cabinet, etc.

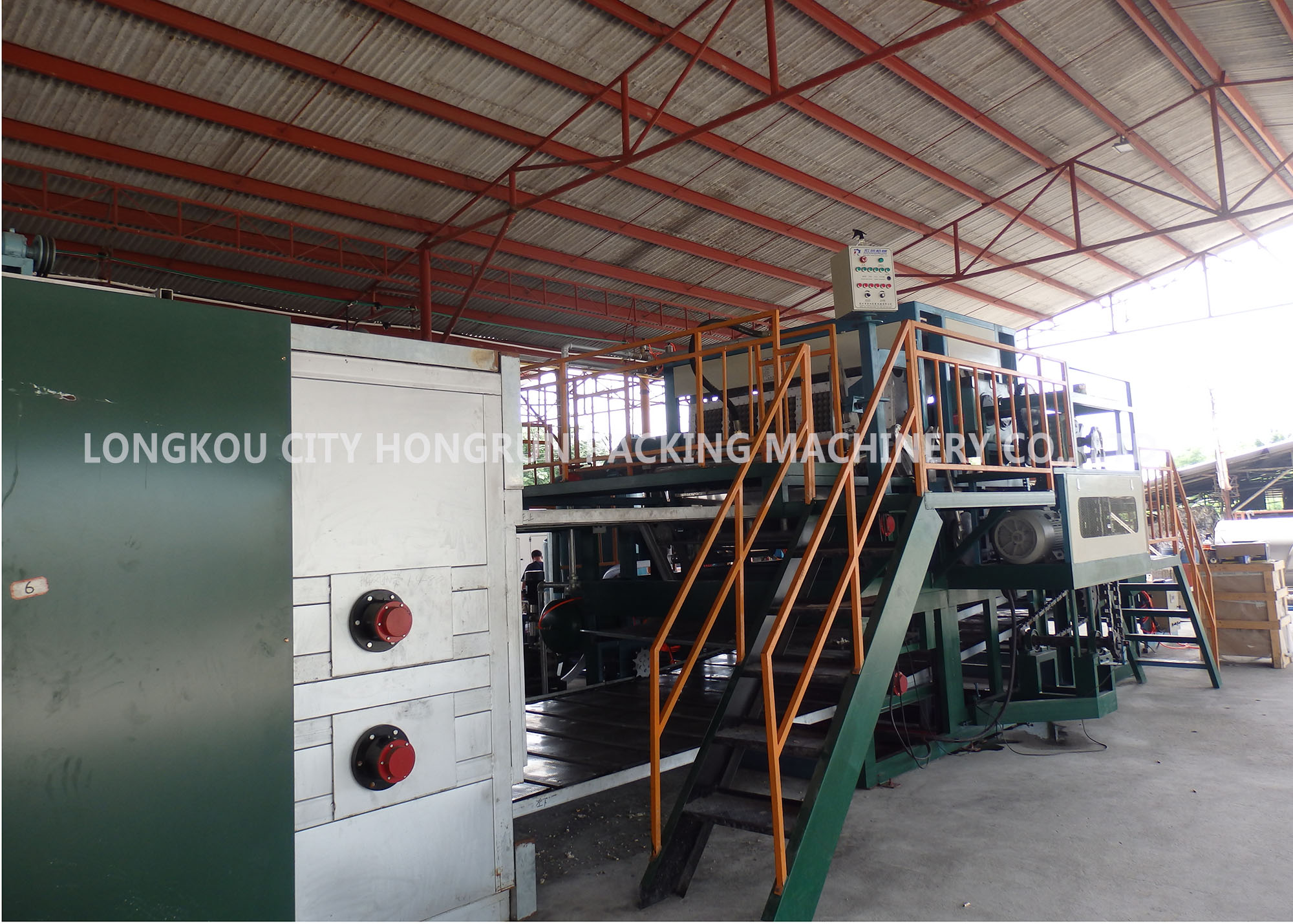

    Forming System: This equipment consists of 8 forming pattern plates and 1 transfer plate. The size of each plate is 1470mm×470mm and each plate can carry 4 sets of 30pcs egg tray mould, totally 32 sets. The molding efficiency is 13-15 plates/minutes. It is equipped with automatic vacuum drainage system, automatic plate washing system, pre-drying system and automatic control cabinet.

    Drying System: There are 2 kinds of drying system. One is metal, the other is civil engineering. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.


    Features of Egg Tray Machine

    1) Full automatic running according to setting
    2) Global famous brand of electric parts make stable running
    3) Optimized design with new technology, leading to high efficiency
    4) Perfect malfunction checkout system and motor protecting system guarantee safe running.
