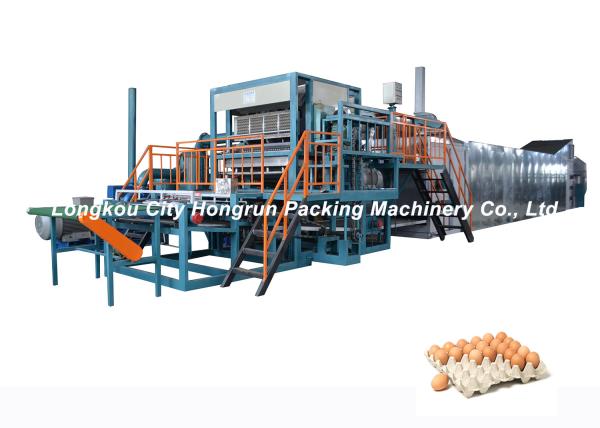

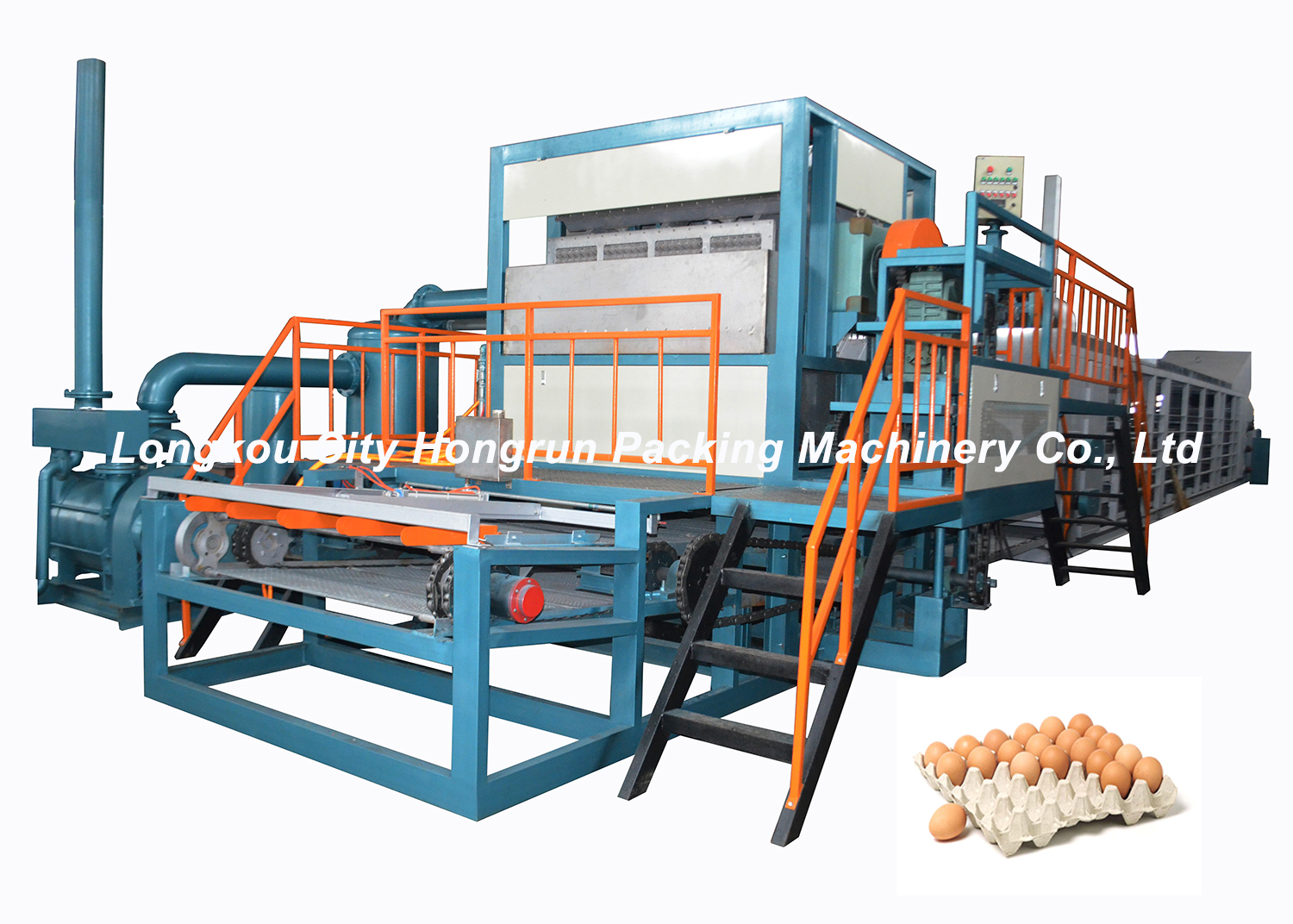

    Hongrun Paper Pulp Egg Box Making Machine Large Capacity 4000pcs/Hr

    Ask Lasest Price
    Brand Name : HONGRUN
    Price : negotiation
    Delivery Time : About 75 days
    Payment Terms : T/T, L/C
    Supply Ability : 100SETS PER YEAR
    Certification : ISO9001, CE, SGS, BV, TUV
    Model Number : HRZ-4000M
    • Product Details
    • Company Profile

    Hongrun Paper Pulp Egg Box Making Machine Large Capacity 4000pcs/Hr

    Hongrun Paper Pulp Egg Tray / Box / Carton Making Machine For Sale


    We manufacturer pulp moulding plant for egg trays, pulp moulding plant for egg boxes, pulp moulding plant for apple trays, pulp moulding plant for meet portion trays, pulp moulding plant for vegetable portion trays, pulp moulding plant for fruit portion trays, pulp moulding plant for strawberry punnets, pulp moulding plant for kidney trays, pulp moulding plant for wine packs, pulp moulding plant for can trays, pulp moulding plant for seed pots and pulp moulding plant for food packaging plates.

    The whole production line include pulp making system + egg tray molding system + egg tray drying system + egg tray packing system.

    Pulp Making System:

    Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.

    Moulding System:

    Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..

    Drying System:

    Bellows, Air Blower, Conveyer

    Packaging Machine:

    High quality of pulp molding machine for paper trays could design according to the customer’ requirement.

    Technical parameter


    ItemInformationNotes
    Output Range4000pcs/h30 packed egg tray(60~80g)
    Workshop recommendation>=525m2

    Length>=35m;width>=15m;height>=6m;

    (It could be adjusted according to the user's existing workshop)

    Type of MaterialWaster paper

    News paper/Carton /Paper box/Books/

    Corrugated paper etc.

    Material consumption250~280kg/h30 packed egg tray (65~70g)
    Water consumption650-1000kg/h30 packed egg tray (65~70g)
    Electricity consumption110kwFull throttle operation

    Fuel consumption

    (approximately)

    LPG 25~32M3/hChoose one from the three types of fuel
    natural gas 75~95 M3/h
    diesel 60~80kg/h
    Operator Required4~6 people/shift24 hours ,3 shift
    Container requirement for Transport4 of 40’HQ containerWhole production line

    Production flow chart

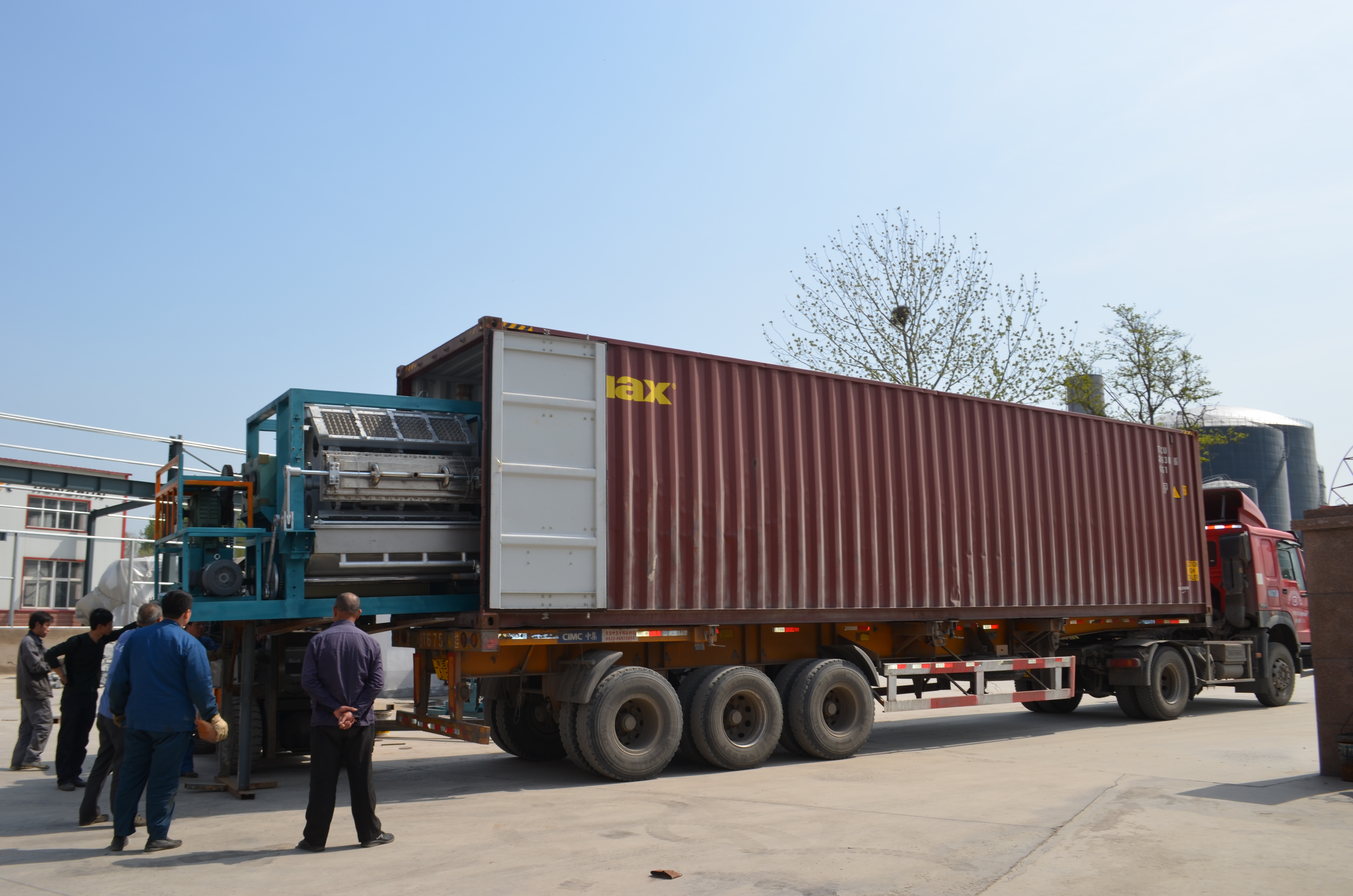

    Packing & Delivery

    After-sales Service

    1. Our company view adhering to the "excellent quality, customer satisfaction" service concept, to provide you with excellent products and perfect service.
    2. Our company keep the contract and reputation. Quality first, products guarantee a year, as it is quality problem, free replacement.
    3. For every purchase of our company's products, the company can send technicians to guide the installation and debugging, and can undertake the design of process and equipment installation.
    4. Our company ensure that supply of parts discount all the year round.

    MORE MODEL FOR OPTIONS


    For 30-cell egg tray as the example:
    ModelThroughputDrying SystemWorkshop SpaceRated Power
    HR-1000S1000pcs/hSingle-Layer Metal40m*10m*6m88KW
    HR-1500S1500pcs/hSingle-Layer Metal42m*10m*6m122KW
    HRZ-2000M2000pcs/hMulti Layers Mental30m*10m*6m160KW
    HRZ-3000M3000pcs/hMulti Layers Mental30m*10m*6m187KW
    HRZ-4000M4000pcs/hMulti Layers Mental35m*10m*6m206KW
    HRZ-6000M6000pcs/hMulti Layers Mental38m*15m*6m327KW
    HRP-8000M8000pcs/hMulti Layers Mental35m*20m*6m470KW
    HRD-12000M12000pcs/hMulti Layers Mental45m*20m*8m477KW
    ž Exact data are subject to final contract.
