Paper Pulp Molding Machine Making Egg Carton / Egg Tray 4000 PCS /
H
Egg Tray Machine (pulp moulding machine) consume used waste paper
as raw
material and produce different kinds of paper tray according to
your requirement,

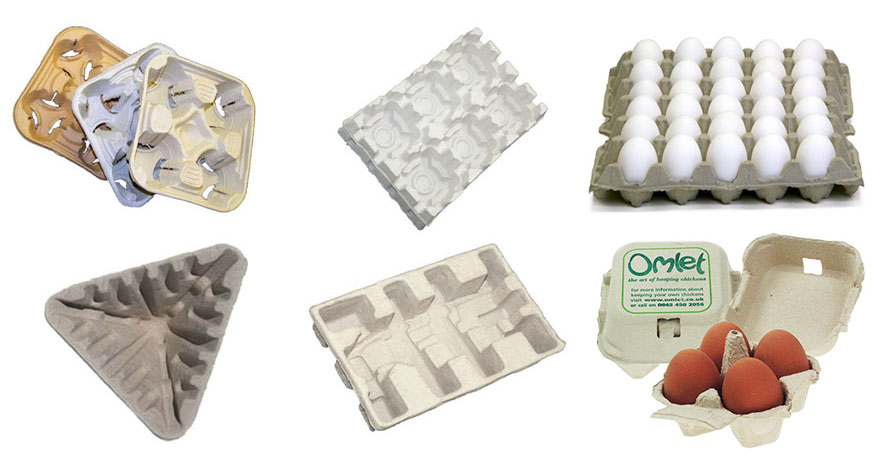

such as egg tray/dishes ,egg carton/box,fruit tray,industrial
package tray,seeding
tray ,win tray ,shoe support and small products packages ,etc. The
different final
products are decided by your market choice.
1. Pulp molding system: Hydraulic pulper, High-frequency vibration
sieve frame, Pulp pump, Strengthening of self-priming pump,
Agitator, Control cabinet of pulping system
2. Forming system: Rotary forming machine, Molds, Vacuum pump,
Screw Air Compressor, Vacuum buffer tank, Air compressor storage
tank, White Water pump, High-pressure water pump, Refiner machine,
Power cabinet of forming system
3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows,
etc
4. Packing system: Packing machine
Raw material
The raw material is for the molded pulp products is waste
paper,Corrugated paper,waste newspaper,magazine, the scrapes from
color printing plants and paper boxes.The raw materials are free
pollution, can be recycled. and easy to find.The chemical materials
of the products are the same as the paper. The moulds material can
use plastic or aluminous depend on buyer's request The equipment
performance is stable.
Technical data
| Item | Information | Notes |
| Output Range | 4000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | >=525m2 | Length>=35m;width>=15m;height>=6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waster paper | News paper/Carton /Paper box/Books/ Corrugated paper etc. |
| Material consumption | 250~280kg/h | 30 packed egg tray (65~70g) |
| Water consumption | 650-1000kg/h | 30 packed egg tray (65~70g) |
| Electricity consumption | 110kw | Full throttle operation |
Fuel consumption (approximately) | LPG 25~32M3/h | Choose one from the three types of fuel |
| natural gas 75~95 M3/h |
| diesel 60~80kg/h |
| Operator Required | 4~6 people/shift | 24 hours ,3 shift |
| Container requirement for Transport | 4 of 40’HQ container | Whole production line |
Characteristics of our machine:
1. Automation equipment, reducing labor costs.
2.Environmental protection, low production cost.
3. Energy-saving,water-saving.
4. Stable final product quality, same weight, same dimension,
strong and good appearance.
5. The same equipment, replacement mold, can produce a variety of
paper tray products, a multi-purpose machine, can meet different
markets demand.
Our Services
Pre-sale service:
help you design the layout of the equipment. 2. take you to see our
factory. 3. answer all your question.
In-sale service: ensure the quality and delivery time.
After-sale service:
We supply videos and installation instruction to teach how to
install the equipment.
