Automatic Pulp Molding Machine Egg Tray Machine For 6000PCS / H
Capacity
Description for Egg tray machine
Egg tray machine equipment mainly uses waste paper,waste carton as
raw materials. By smash pulp, vibrating pulp, grinding pulp and
forming pulp, the forming machine adsorbs the pulp by vacuum type
with some necessary chemicals. The equipment also can produce the
followings: package for glass and ceramics, crafts, small
machinery, electric products, toys and so on. The paper carton can
replace the plastic bag and corrugated paper. And they not only
have the protection, cushion performance, make less damage, improve
the package figure, but also can saving cost, protect environment
and can be recycled use. They are the typical product in the green
package storm.
Flow Chart:
1. Pulping system-------2. Forming system-------3. Drying system
Pulping system: Hydrapulper ,Pulp pump ,Air compressor,agitator,Self priming
pump,pulping machine.
Forming system: Full automatic egg tray forming machine, Vacuum pump , High
pressure washer, Negative pressure tank , mould, Transfer mould,
baler .
Drying system: There are 2 kinds of drying system. One is metal, the other is
brick. The conveyor plate
can be one layer and multi-layer, direct combustion hot air
circulation. Using the imported or joint venture brand burner
(domestic uses the stove bar), equipped with an automatic control
cabinet.
Technical data of egg tray machine
| Item | Information | Notes |
| Output Range | 6000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | ≥600m2 | Length≥40m;Width≥15m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waste paper | Newspaper/Carton /Paper box/Books/ Corrugated paper/Kraft paper etc. |
| Material consumption | 360~480kg/h | 30 packed egg tray(60~80g) |
| Water consumption | 800-1050kg/h | 30 packed egg tray(60~80g) |
| Electricity consumption | 140-175kw/h | Full throttle operation |
Fuel consumption (approximately) | LPG 55~70 kg/h | 30 packed egg tray(60~80g) Choose one from these types of fuel |
| Natural gas 85~100 m3/h |
| Diesel 65~80kg/h |
| Operator Required | 5~8 person/shift | 24hours, 3shift |
| Container requirement for Transport | 5 of 40 HQ container + 1 of 20’GP container | Whole production line |
Features of Egg Tray Machine
1) Full automatic running according to setting
2) Global famous brand of electric parts make stable running
3) Optimized design with new technology, leading to high efficiency
4) Perfect malfunction checkout system and motor protecting system
guarantee safe running.

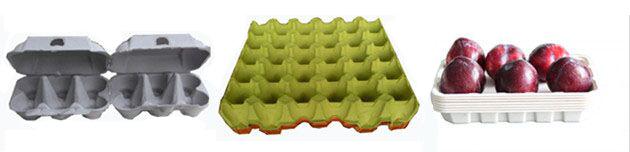

Application
The tray of eggs, paper pulp egg holder, quail egg boxes, eggs in a
box, egg crate, egg tray, egg container, egg cartons for
sale, chicken egg holder, etc.
| Egg tray | 20, 30, 40 packed egg tray… quail egg tray |
| Egg carton | 4, 6, 9, 10, 12, 15, 18, 24 packed egg carton… |
| Agricultural products | Fruit tray, seeding cup |
| Cup salver | 2, 4 cup salver |
| Disposable Medical Care Products | Bedpan, sick pad, female urinal… |
| Packages | Shoe tree, industrial package… |
Our company can supply the following model of egg tray machine
| For 30-cell egg tray as the example: |
| Model | Throughput | Drying System | Workshop Space | Rated Power |
| HR-1000S | 1000pcs/h | Single-Layer Metal | 40m*10m*6m | 88KW |
| HR-1500S | 1500pcs/h | Single-Layer Metal | 42m*10m*6m | 122KW |
| HRZ-2000M | 2000pcs/h | Multi Layers Mental | 30m*10m*6m | 160KW |
| HRZ-3000M | 3000pcs/h | Multi Layers Mental | 30m*10m*6m | 187KW |
| HRZ-4000M | 4000pcs/h | Multi Layers Mental | 35m*10m*6m | 206KW |
| HRZ-6000M | 6000pcs/h | Multi Layers Mental | 38m*15m*6m | 327KW |
| HRP-8000M | 8000pcs/h | Multi Layers Mental | 35m*20m*6m | 470KW |
| HRD-12000M | 12000pcs/h | Multi Layers Mental | 45m*20m*8m | 477KW |
