High Speed Full Automatic Pulp Egg Packing Box Machine CE Approved
The project uses waste paper, waste paper as raw material to
produce egg tray. This section consists of four parts production
line(That pulping system, molding system, packaging systems) ;The
following is the name of the individual equipment, Brief
specifications and equipped with a motor, etc.)
Technical data of egg box machine
| Item | Information | Notes |
| Output Range | 6000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | ≥600m2 | Length≥40m;Width≥15m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waste paper | Newspaper/Carton /Paper box/Books/ Corrugated paper/Kraft paper etc. |
| Material consumption | 360~480kg/h | 30 packed egg tray(60~80g) |
| Water consumption | 800-1050kg/h | 30 packed egg tray(60~80g) |
| Electricity consumption | 140-175kw/h | Full throttle operation |
Fuel consumption (approximately) | LPG 55~70 kg/h | 30 packed egg tray(60~80g) Choose one from these types of fuel |
| Natural gas 85~100 m3/h |
| Diesel 65~80kg/h |
| Operator Required | 5~8 person/shift | 24hours, 3shift |
| Container requirement for Transport | 5 of 40 HQ container + 1 of 20’GP container | Whole production line |
HRZ-6000M rotary type automatic paper pulp molding production line system
basic constitution
The HRZ-6000M rotary type automatic paper pulp molding production
line constituted by five large-scale systems:
(1) Pulping system
(2) Forming machine
(3) Drying system
(4) Finished products automatic stacking, collection and manual
packing system
(5) Electricity control system
(1)Pulping system:
Pulping system is mainly comprised of hydrapulpter, pulp pump,
multi-function refiner machine, blender, control cabinert,ect.
It can make the pulp by the waste paper. And it is the first step
in making process!
(2)Forming system:
This part mainly is the egg tray forming machine. We could produce the forming mould and transferring mould based
on our customers' requests. The material of the mould could be
Aluminum, Resin, Plastic.
(3)Drying line
This is very important in all of the line. When the egg tray is
made over by the forming machine, the egg tray will be put on the
drying line, they will across the drying channel, then you can get
the dry tray!

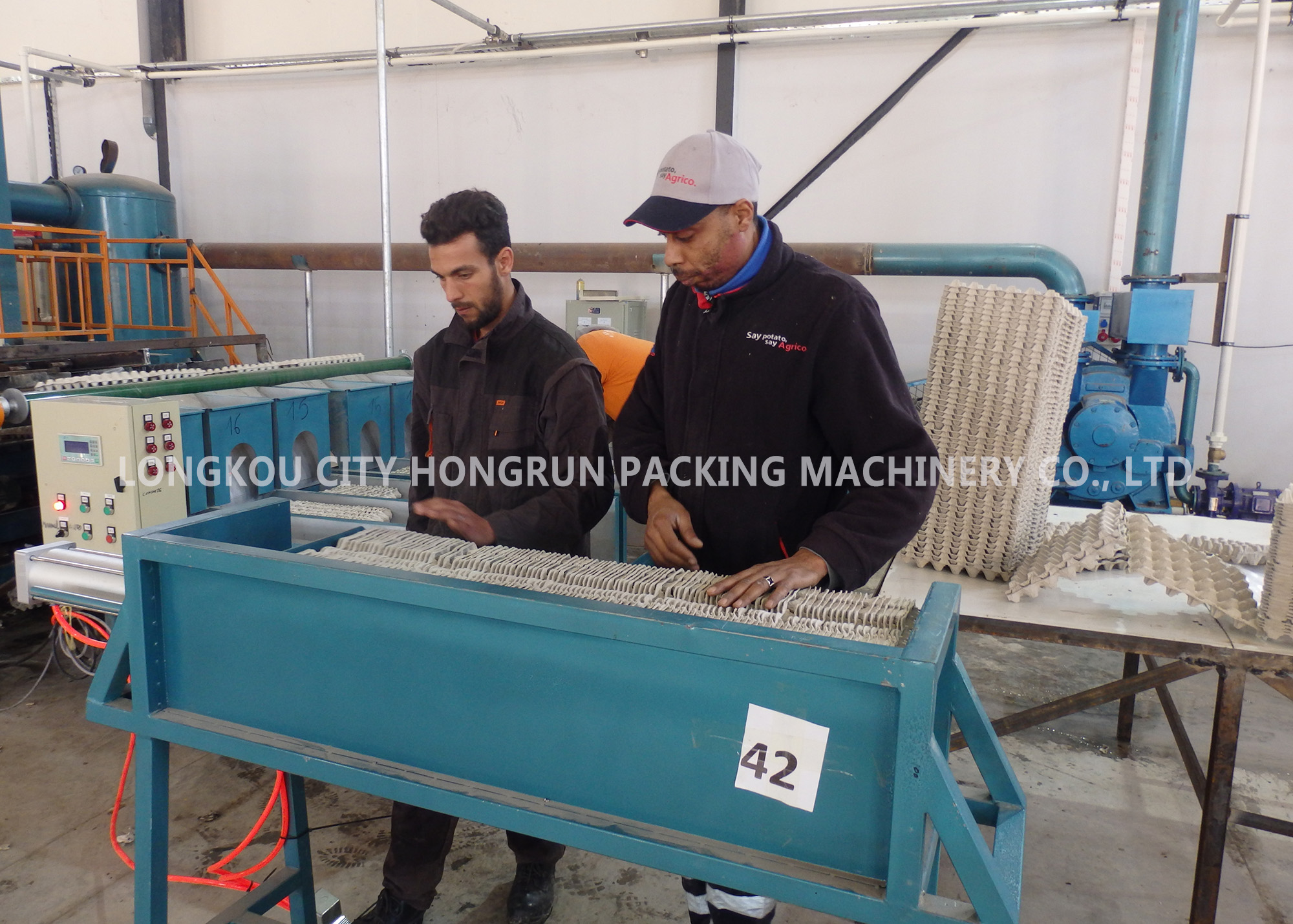

(4)Packing machine
This is the last step when we get the finished tray from the drying
line, we can packing them.
If you want to buy the best egg tray machine or pulp molding
machine, please contact me! I can help you!
Technological process
Application
The tray of eggs, paper pulp egg holder, quail egg boxes, eggs in a
box, egg crate, egg tray, egg container, egg cartons for
sale, chicken egg holder etc.
| Egg tray | 20, 30, 40 packed egg tray… quail egg tray |
| Egg carton | 4, 6, 9, 10, 12, 15, 18, 24 packed egg carton… |
| Agricultural products | Fruit tray, seeding cup |
| Cup salver | 2, 4 cup salver |
| Disposable Medical Care Products | Bedpan, sick pad, female urinal… |
| Packages | Shoe tree, industrial package… |
